Atlantic-Oase TPS Shallow-Water Aeration Systems
Atlantic-Oase TPS Shallow-Water Aeration SystemsSKU:ATL/73970
Couldn't load pickup availability
Product description
Atlantic-Oase TPS Shallow-Water Aeration Systems provide a comprehensive, "plug-and-play" solution for oxygenating ponds and lakes up to 7 feet deep. These all-inclusive kits combine professional-grade components to improve water clarity, reduce muck buildup, and support aquatic life in bodies of water up to half an acre. By delivering oxygen from the bottom up, these systems break through thermal stratification and ensure a healthy, balanced ecosystem year-round.
Complete All-in-One Kits

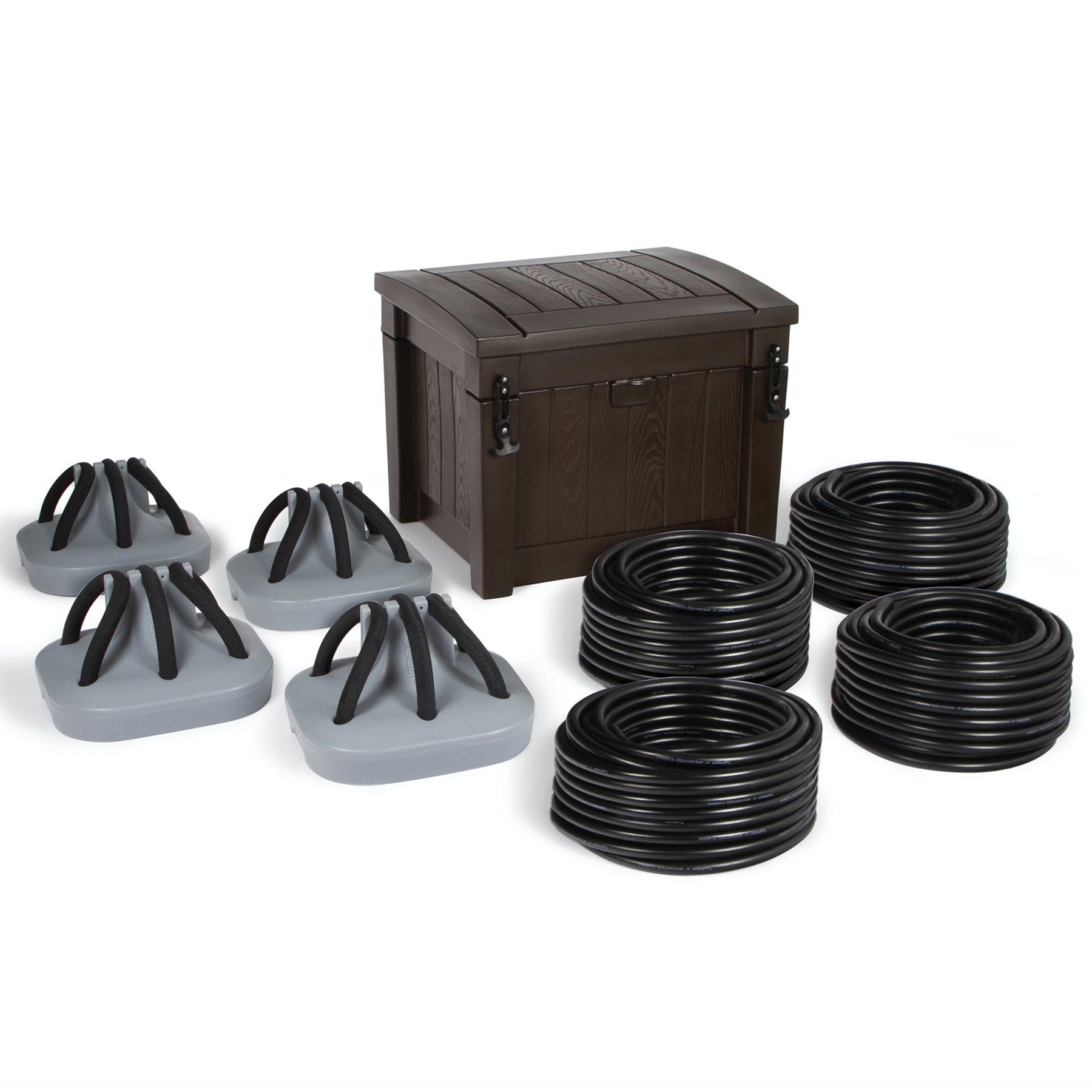

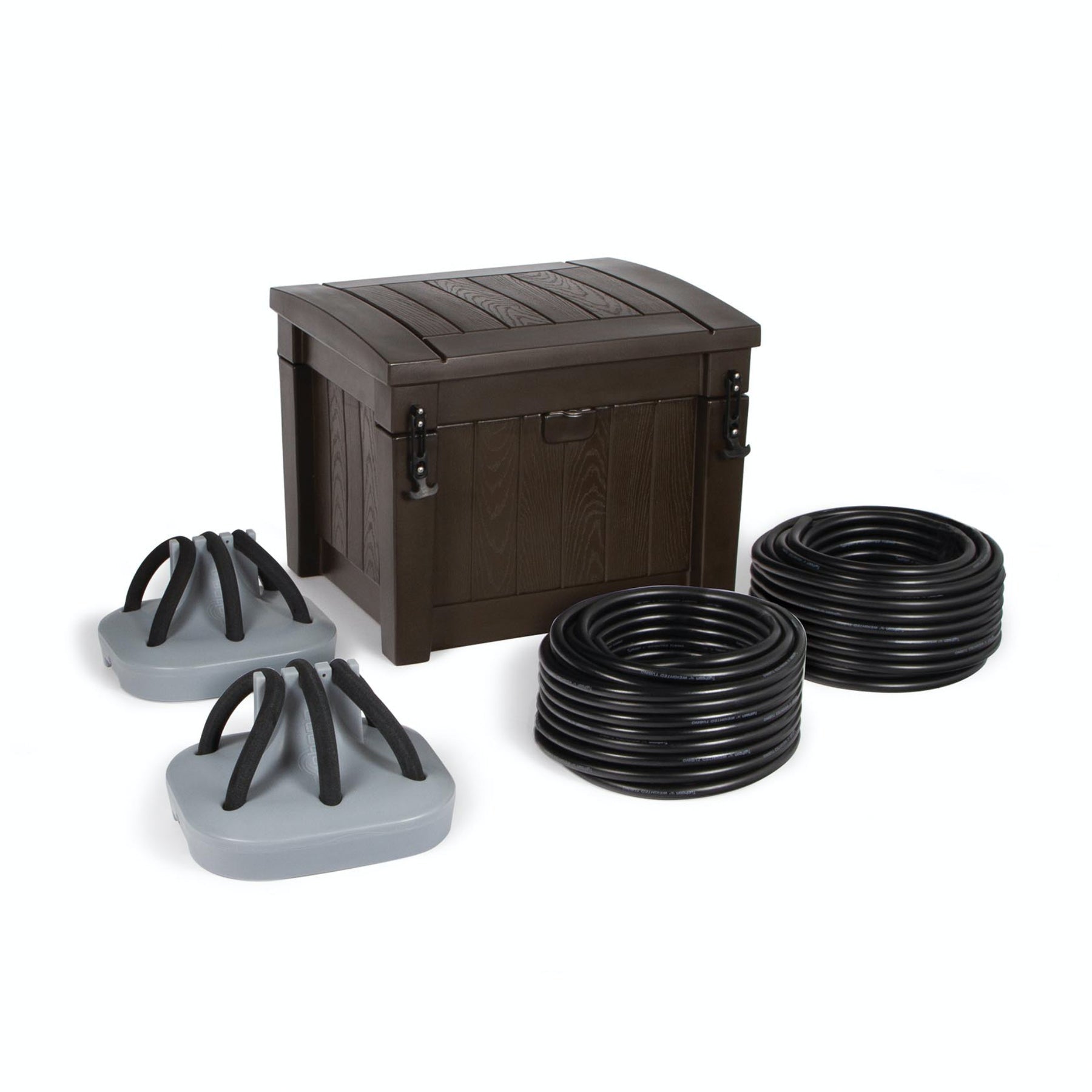

Unlike standalone components, the TPS series comes as a complete system, ensuring total compatibility and ease of setup. Each kit is available in two variants: a 2-Diffuser system and a 4-Diffuser system. Every package includes a heavy-duty Aeration Cabinet with all internal subcomponents pre-installed, high-efficiency Shallow Water Diffusers, and durable Weighted Tubing that stays submerged without extra weights.
Superior Protection & Performance

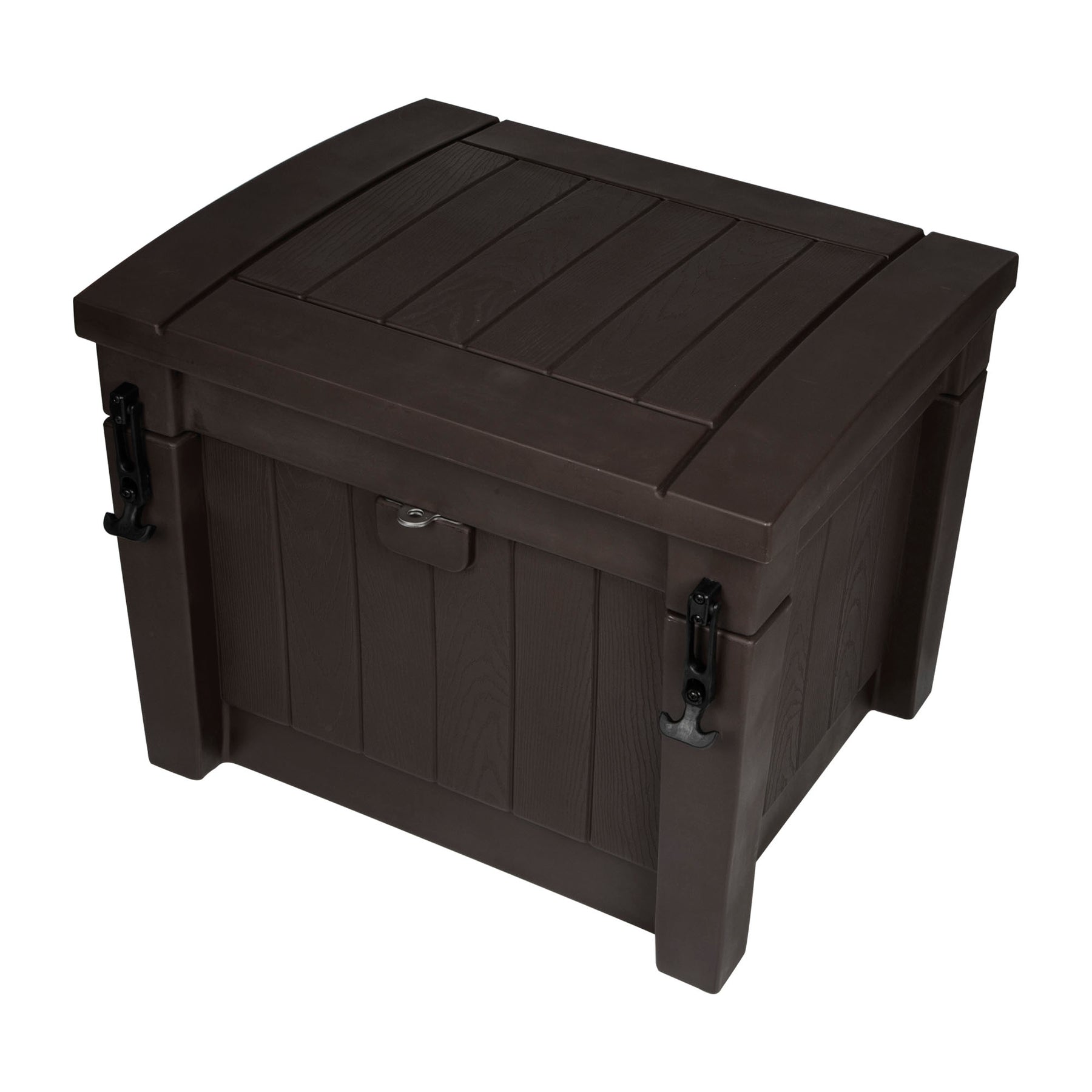

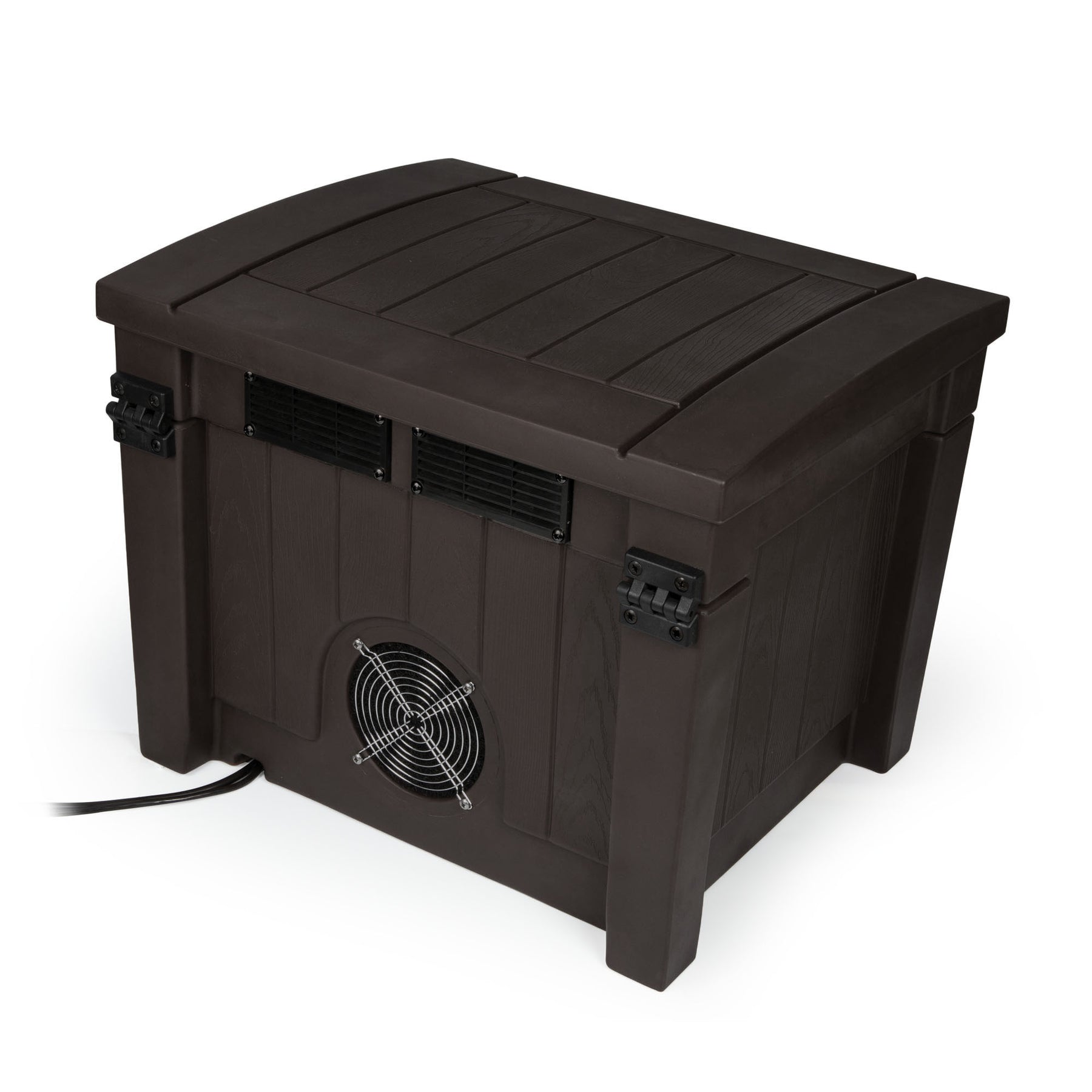

At the heart of the system is the Typhoon Linear Piston Compressor, housed in a double-walled, sound-muffling cabinet. The cabinet is equipped with an integrated cooling fan to prevent overheating and a filtered air intake to keep the compressor running clean. For added security, the reinforced lids are lockable and feature vandal-resistant screws, making these systems ideal for both private estates and public landscapes.
Optimized for Shallow Environments
The TPS200S and TPS400S are specifically tuned for the unique dynamics of shallow water. Whether you are managing a quarter-acre pond or a larger half-acre lake, these systems provide maximum CFM (Cubic Feet per Minute) at lower pressures, which is essential for efficient airflow in shallower depths. Backed by a 2-year warranty, Atlantic-Oase systems provide the reliability and performance demanded by professional pond managers.

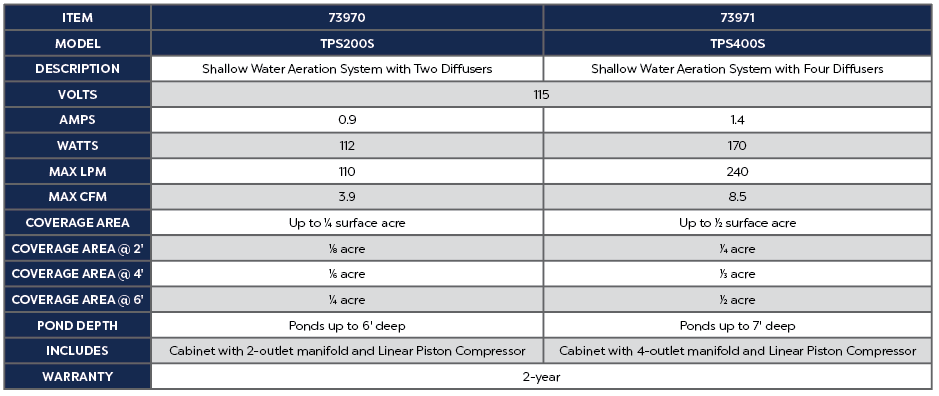

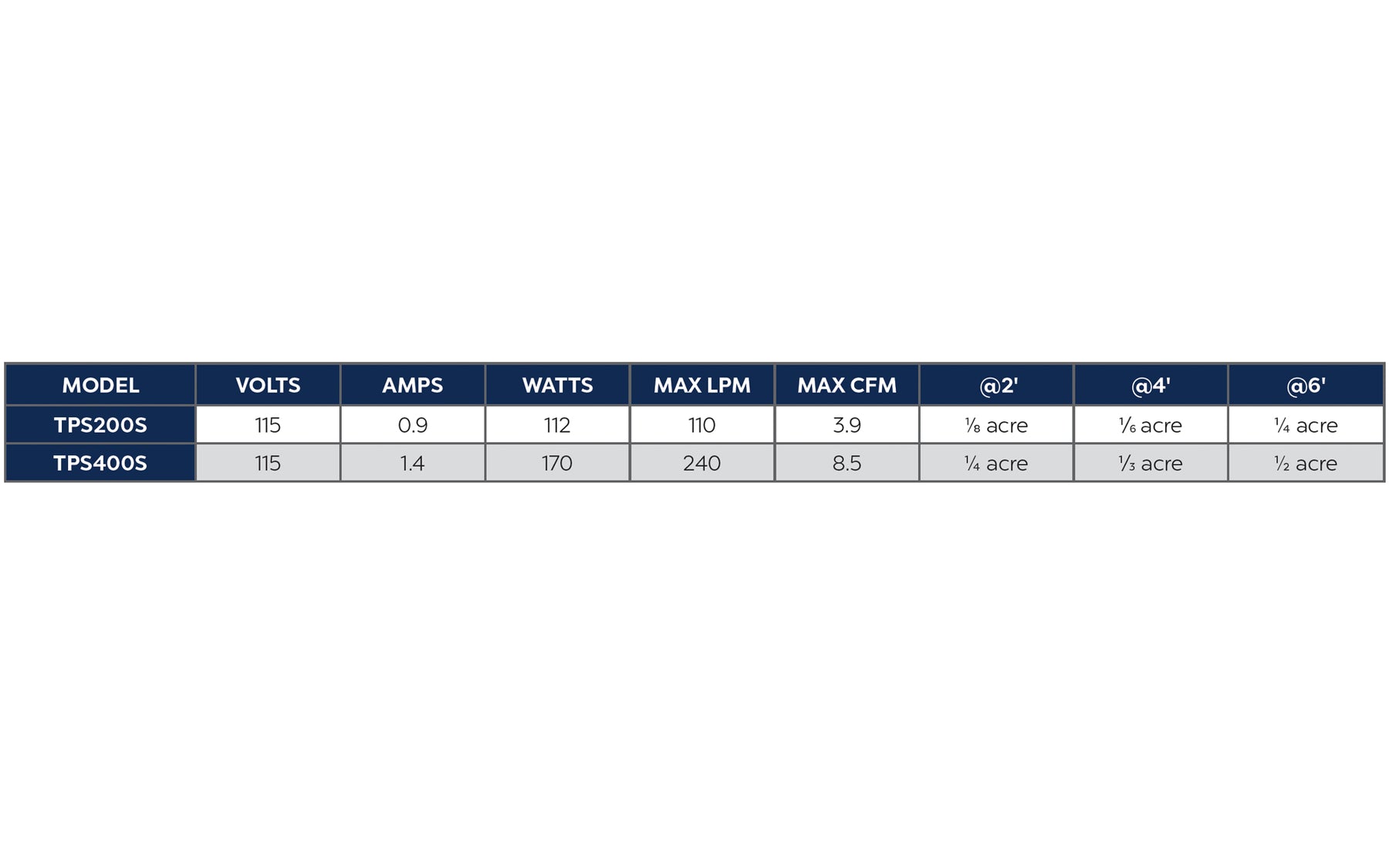

Technical Specifications
| Specification | TPS200S (73970) | TPS400S (73971) |
|---|---|---|
| Max Coverage Area | Up to 0.25 acre | Up to 0.50 acre |
| Max Pond Depth | Up to 6' deep | Up to 7' deep |
| Compressor Power | 112W / 0.9A | 170W / 1.4A |
| Max Airflow (CFM/LPM) | 3.9 CFM / 110 LPM | 8.5 CFM / 240 LPM |
| Components Included | TPS200C Cabinet, (2) Tubing, (2) Diffusers | TPS400C Cabinet, (4) Tubing, (4) Diffusers |
| Warranty | 2-Year Warranty | |

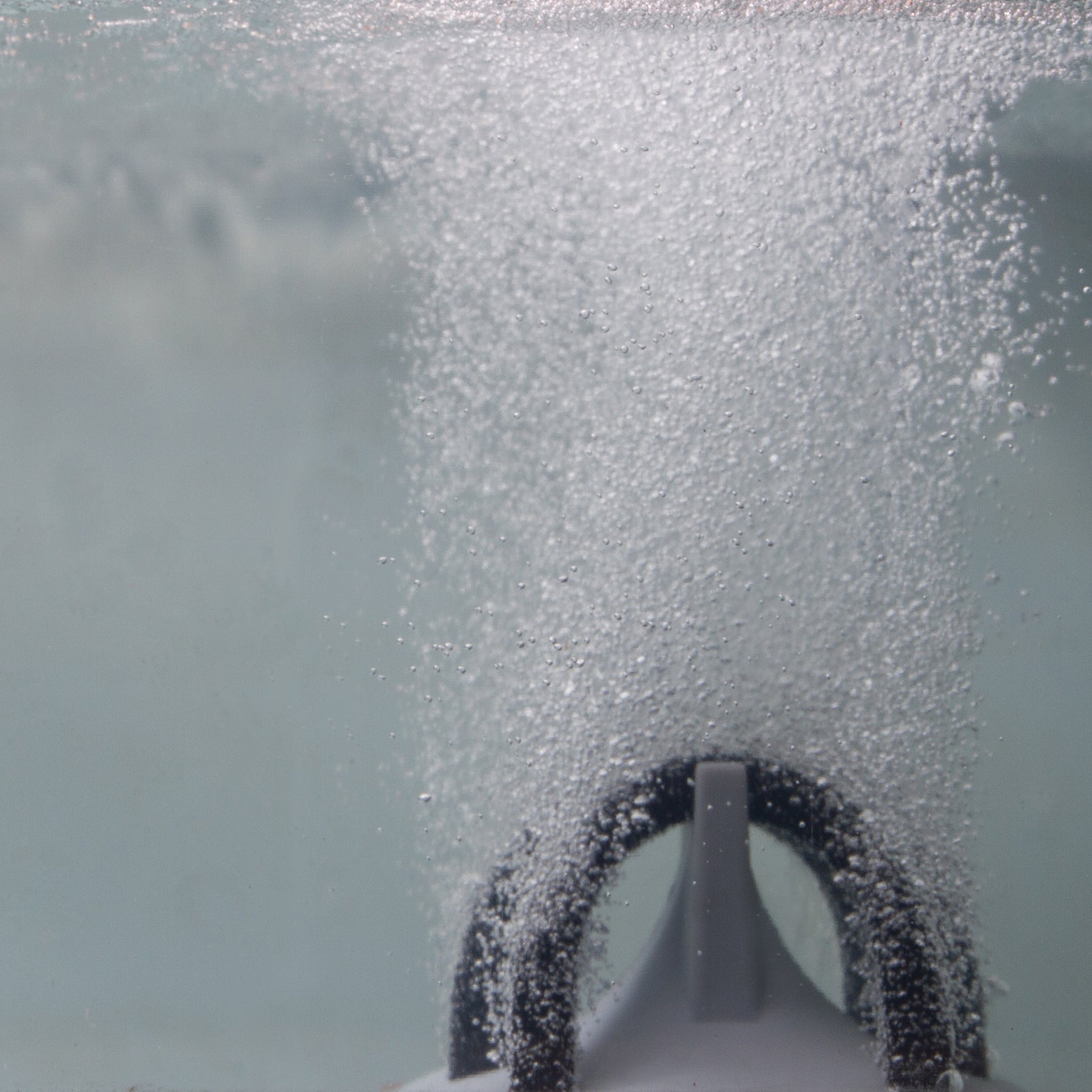

Since this system is designed for shallow water, optimal diffuser placement is key. Space the diffusers evenly across the pond floor to ensure uniform oxygenation. The included weighted tubing is designed to sink immediately—avoid kinking the line during installation to maintain maximum airflow from the Typhoon compressor.
