Why use a True Union ball valve?

True Union valves feature dual collar nuts that allow for the easy removal of pumps or filters for maintenance or winterization without cutting or re-gluing pipes. This modular approach is essential for long-term infrastructure care.

How does plumbing quality affect pump efficiency?

Using professional Schedule 80 fittings with low-friction geometry reduces head loss by 10-25%. This ensures the pump maintains its optimal flow rate (Duty Point) while consuming less electricity.

What is the role of a hydraulic check valve?

A check valve prevents backflow when the pump stops, eliminating the risk of water hammer (pressure surges) and preventing pump dry-running during startup.

How do I prevent plumbing from cracking in winter?

To ensure freeze-thaw resilience, use Schedule 80 fittings for higher impact strength, frost-rated EPDM gaskets, and modular unions that allow lines to be fully drained for winterization.

Collection: Plumbing Parts

The reliability of your water feature depends on the integrity of its hydraulic veins. Plumbing components in ponds, fountains, and commercial systems operate under constant pressure shifts and pump vibrations. A single failed fitting can lead to catastrophic water loss and pump burnout within hours.

Our catalog features professional PVC-U and CPVC components designed for high-pressure resilience. Available as individual fittings or complete pre-assembled manifold systems, our inventory is engineered to maintain a leak-proof, high-efficiency system across the USA and Canada.

Critical Components for Hydraulic Security

Union Ball Valves: Featuring PTFE seats for smooth operation. The "True Union" design allows the valve body to be removed for winterization without disturbing the main pipeline.

Hydraulic Check Valves: Essential for preventing water hammer and protecting your pump from dry-running. Heavy-duty spring-loaded and swing-wafer designs available.

Pressure-Rated Fittings: 45°/90° elbows and tees engineered with a low friction coefficient. Available in Schedule 80 for maximum impact strength and pressure rating.

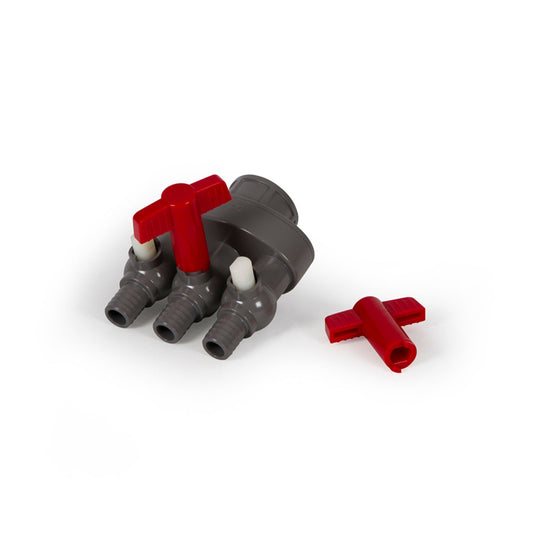

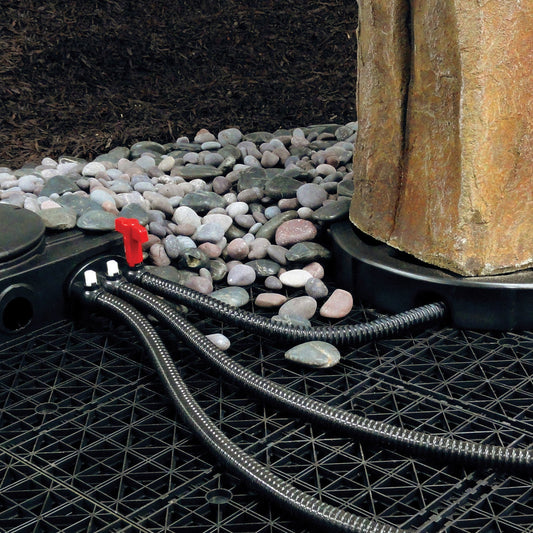

Flow Distribution Manifolds: Professional-grade splitters that balance water between filtration, waterfalls, and fountains while maintaining stable system pressure.

Technical Standards & Hydraulic Efficiency

Poorly designed plumbing can reduce system efficiency by 10–25% due to excessive head loss. Using long-radius elbows and professional pressure-rated fittings ensures your pump operates at its intended Duty Point, reducing energy consumption and mechanical wear.

Component	Material / Standard	Working Pressure
Pressure Pipe/Fittings	PVC-U / Schedule 80	PN10 – PN16 (145–232 PSI)
High-Temp Fittings	CPVC / Industrial Grade	Superior Thermal Stability
Valve Seats	PTFE (Teflon)	Chemical & Scale Resistant
Gaskets	EPDM / Silicone	Freeze-Thaw Resilient (-30°C)

Engineering for Northern Climates: Freeze-Thaw Resilience

In the Northern US and Canadian provinces, plumbing must handle the physical stress of repeated freeze-thaw cycles. We prioritize Schedule 80 PVC and reinforced wall fittings that offer higher impact strength at sub-zero temperatures. Combined with EPDM-sealed unions, these components ensure your hydraulic network remains intact year after year.

The Advantage of Modular Serviceability

Professional plumbing is designed for long-term Asset Protection. By using union-style connections, you eliminate the need for "cut-and-glue" repairs. This modular approach significantly reduces labor costs during seasonal filter maintenance or pump replacements.

Low-Friction Internal Geometry

Smooth internal surfaces in our fittings prevent the accumulation of calcium deposits and biofilm. This maintains the "design velocity" of your water feature, preventing the pump from over-working and reducing operational costs (OPEX).

Pro-Perspective: Preventing Water Hammer

In large-scale water features, the sudden stop of water flow can create a pressure surge (water hammer) that shatters standard fittings. Always install a heavy-duty check valve immediately after the pump. Replacing a $40 valve is much cheaper than re-digging an entire underground pipeline after a burst.

Secure Your Hydraulic Infrastructure

✔ Industrial Grade PVC-U & CPVC
✔ NSF Certified for Safe Water Handling
✔ Engineered for -30°C Freeze-Thaw Resilience
✔ Technical Hydraulic Support Included

Don't compromise on the veins of your system. Explore our professional plumbing components and ensure a leak-free season.

Frequently Asked Questions About Hydraulic Plumbing

What is the advantage of using True Union ball valves?

True Union ball valves are the gold standard for professional water features. They feature threaded collar nuts on both ends, allowing you to remove the entire valve body or disconnect pumps and filters for maintenance and winterization without cutting or re-gluing the pipeline. This modularity protects your hydraulic infrastructure and significantly reduces long-term labor costs.

How does plumbing design affect my pump's energy efficiency?

Poorly designed plumbing with sharp 90° elbows and undersized pipes creates excessive "friction head." This can reduce system efficiency by 10–25%. Using Schedule 80 sweep elbows and smooth-bore fittings ensures your water flow reaches its intended Duty Point, preventing the motor from overworking and lowering your monthly electricity bill.

Why is a check valve critical for my water feature?

A heavy-duty check valve (non-return valve) prevents water from rushing backward when the pump is turned off. This eliminates water hammer—a pressure surge that can shatter pipes—and keeps the pump "primed," protecting the mechanical seals from dry-running during the next startup.

Schedule 40 vs. Schedule 80: Which should I choose?

For residential garden ponds, Schedule 40 is often sufficient. However, for commercial waterfalls and regions in the USA and Canada with deep freeze-thaw cycles, Schedule 80 is highly recommended. Its thicker walls provide superior impact strength at sub-zero temperatures and handle the higher pressures required for massive water lift.
