Atlantic-Oase Air Diffusers
Atlantic-Oase Air DiffusersSKU:ATL/73976
Couldn't load pickup availability
Product description
Atlantic-Oase Air Diffusers are professional-grade aeration solutions engineered to distribute compressed air directly to the bottom of ponds and lakes. By targeting the deepest zones where gas exchange and circulation are most critical, these diffusers effectively eliminate stagnant water and accelerate oxygen saturation. This series offers specialized Shallow Water (TPSDIF) and Deep Water (TPDDIF) models, each utilizing industrial-grade EPDM diffuser tubing to maximize oxygen transfer. These high-performance units are the foundation of a healthy aquatic ecosystem, preventing algae growth and supporting fish health through efficient, continuous bottom-up circulation.
Tailored for Your Environment

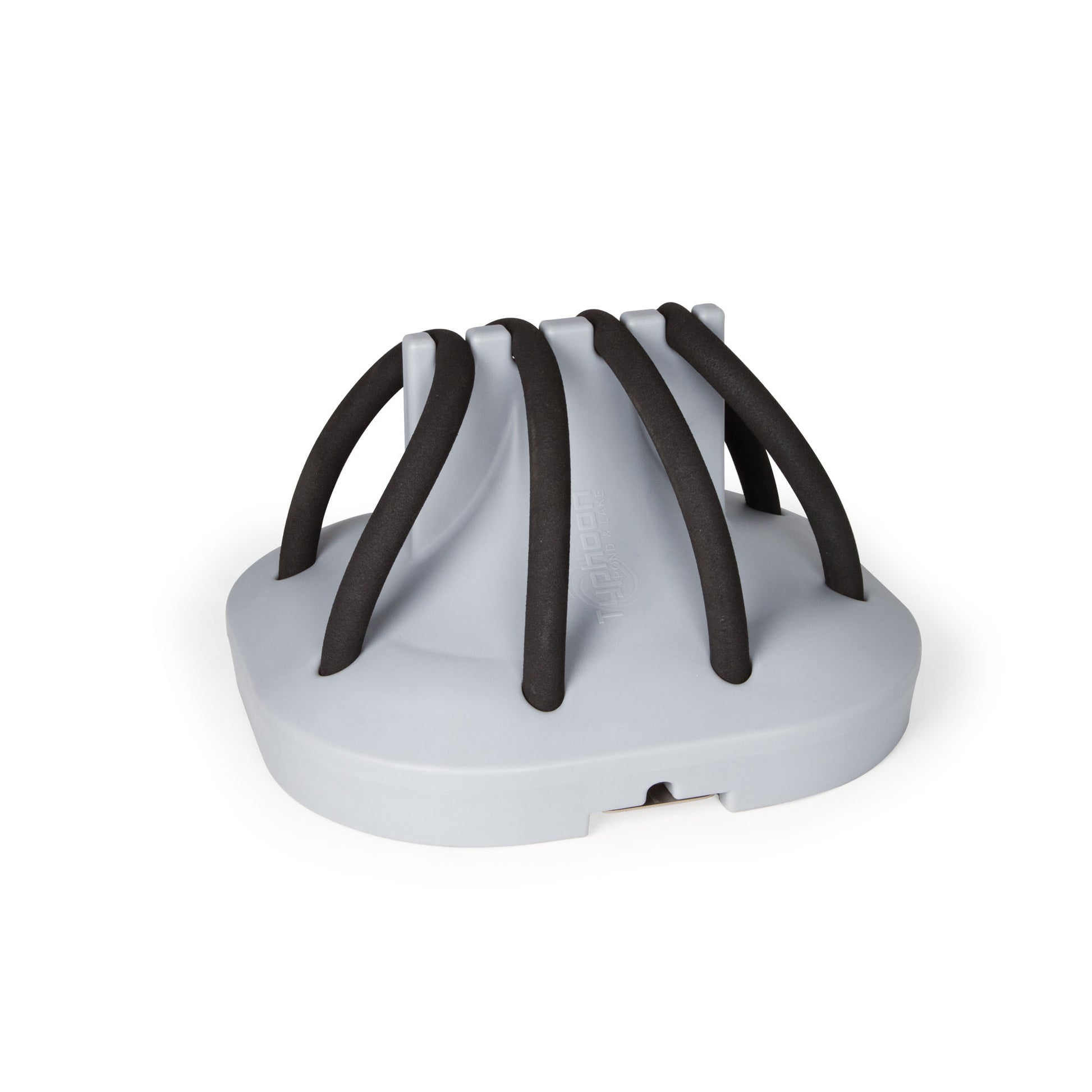

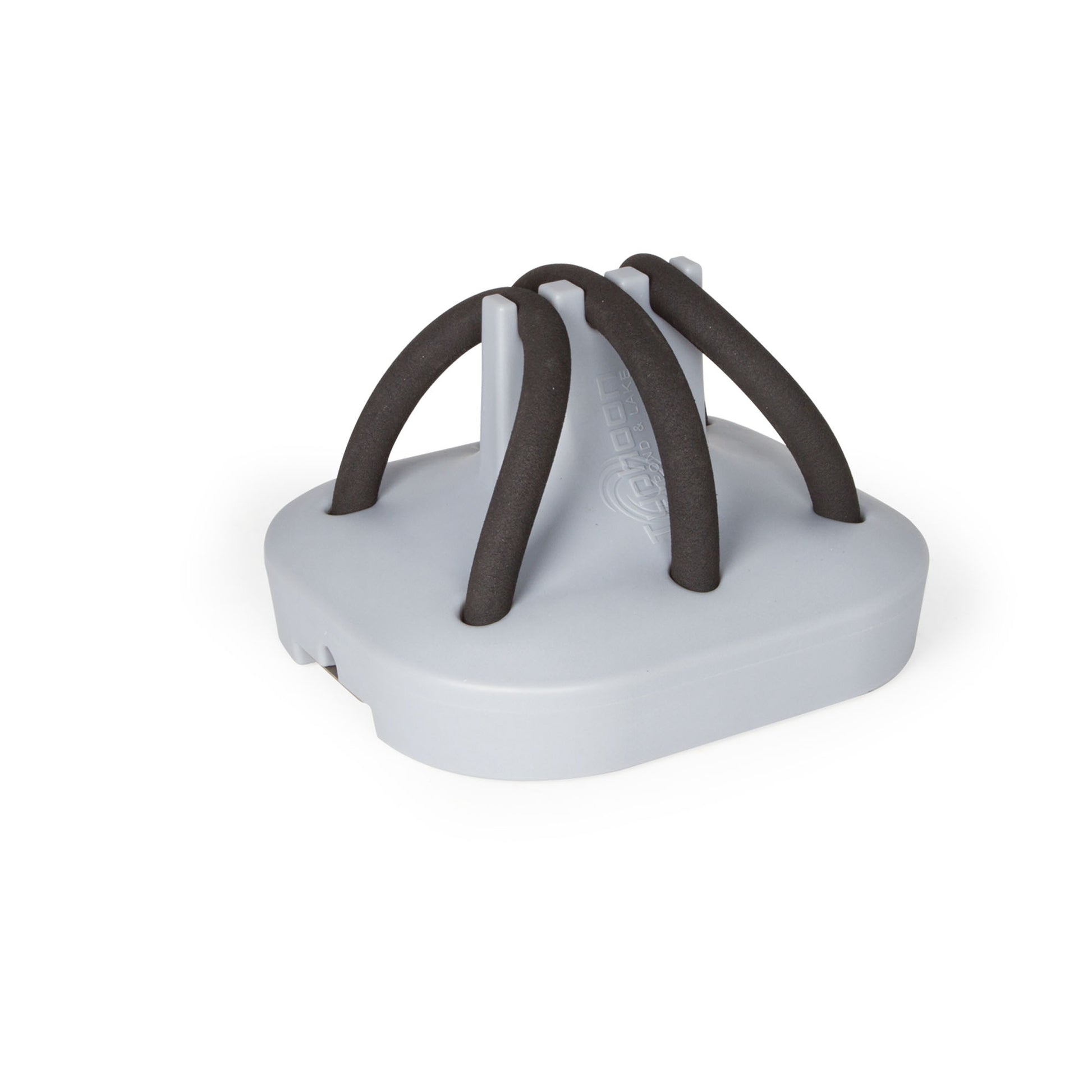

Choosing the right diffuser is critical for system efficiency. The TPSDIF (Shallow Water) model is optimized for lower-pressure systems in ponds, providing maximum circulation without excessive turbulence. For larger, more demanding water bodies, the TPDDIF (Deep Water) model is built to handle the higher pressures of depths up to 35 feet, delivering a powerful 25-150 LPM flow rate to break through thermal stratification in deep lakes.
Industrial-Grade EPDM & Fouling Resistance

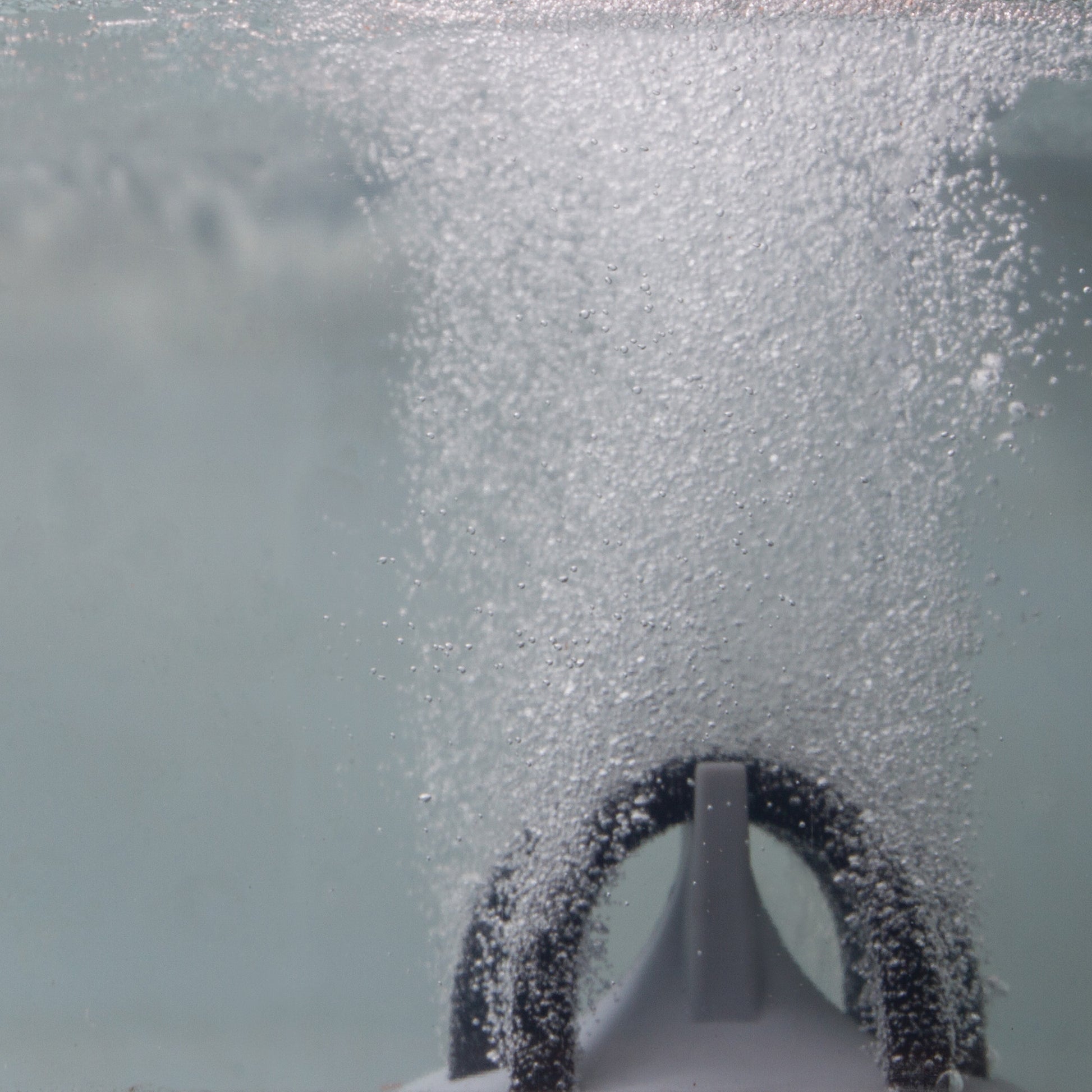

Both models feature extruded EPDM diffuser tubing, a material proven in industrial applications for its incredible longevity. The EPDM is resistant to fouling and mineral buildup, ensuring that the micro-bubbles remain small and efficient over years of continuous use. Smaller bubbles maximize the surface area contact between air and water, which is the most effective way to dissolve oxygen and move large volumes of water from the bottom to the surface.
Innovative Fillable Base Design
To save on freight and simplify logistics, Atlantic diffusers ship empty. The streamlined body is designed to be filled on-site with sand or gravel, providing the necessary weight to keep the unit firmly anchored on the pond or lake floor. Combined with stainless steel hardware and easily replaceable tubing, these diffusers offer a low-maintenance, high-performance solution backed by an industry-leading 5-year warranty.

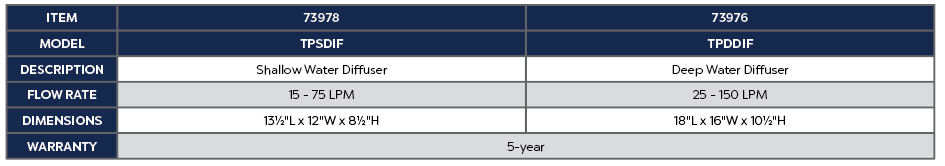

Technical Specifications
| Feature | Shallow Water (TPSDIF) | Deep Water (TPDDIF) |
|---|---|---|
| Application | Ponds & Shallow Lakes | Deep Lakes (Up to 35') |
| Flow Rate | 15 - 75 LPM | 25 - 150 LPM |
| Dimensions | 13.5”L x 12”W x 8.5”H | 18”L x 16”W x 10.5”H |
| Tubing | Replaceable EPDM Tubing | |
| Warranty | 5-Year Warranty | |
Whether you are installing in Shallow or Deep Water, always use clean gravel or dry sand to fill the base. For the Deep Water (TPDDIF) model, ensure your compressor has sufficient PSI to overcome the backpressure of the water column. Periodic cleaning of the EPDM tubing with a soft brush will maintain optimal bubble size and circulation efficiency.
