Product description
Atlantic-Oase Aeration TPD & TPS Cabinet Compressors are the high-performance engines behind the industry’s most reliable aeration systems. This series offers specialized solutions for every environment: TPS linear piston compressors for efficient shallow-water circulation and TPD Gast rocking piston compressors for demanding deep-water applications up to 35 feet. Engineered for continuous duty, these compressors ensure your pond or lake remains oxygen-rich, clear, and biologically active year-round.

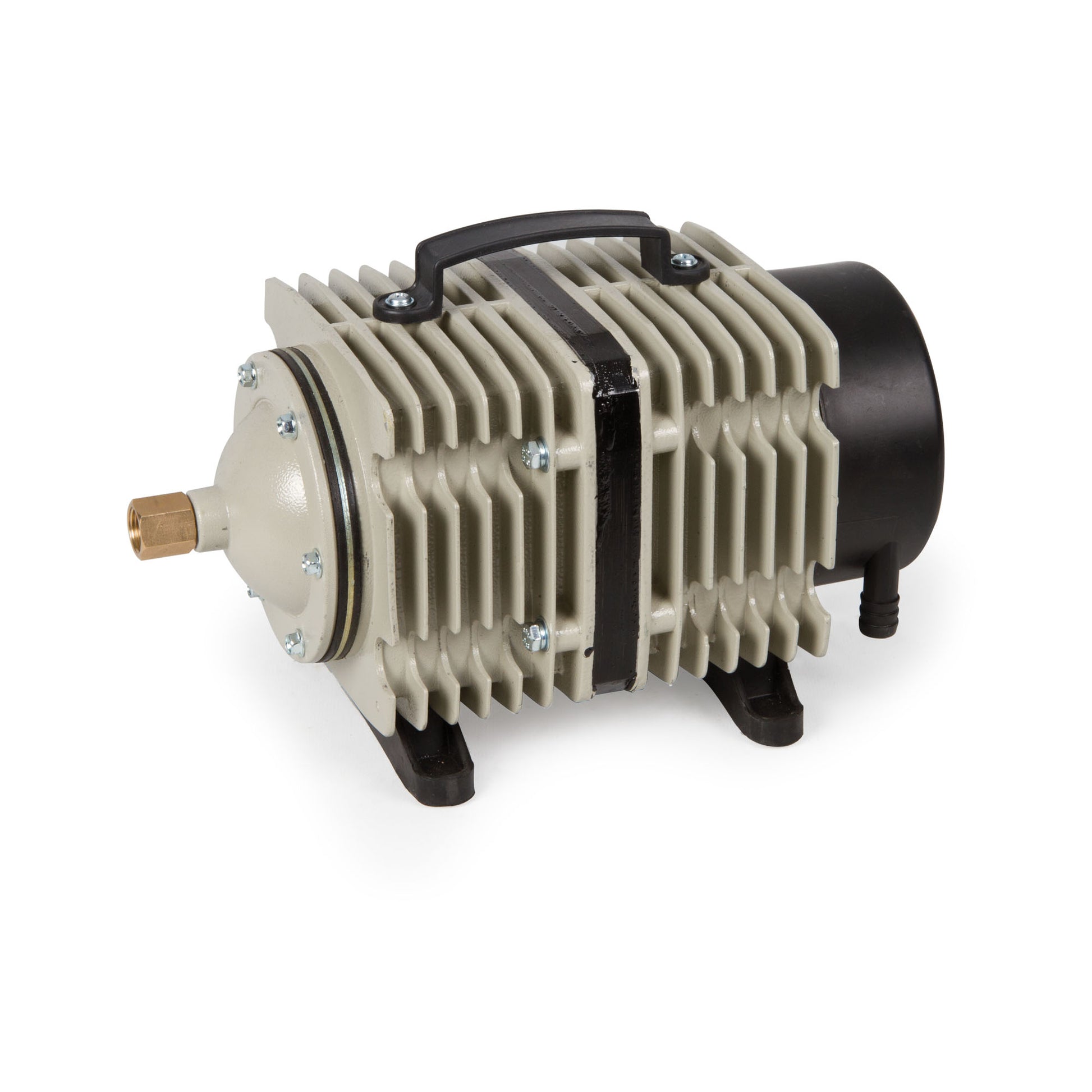

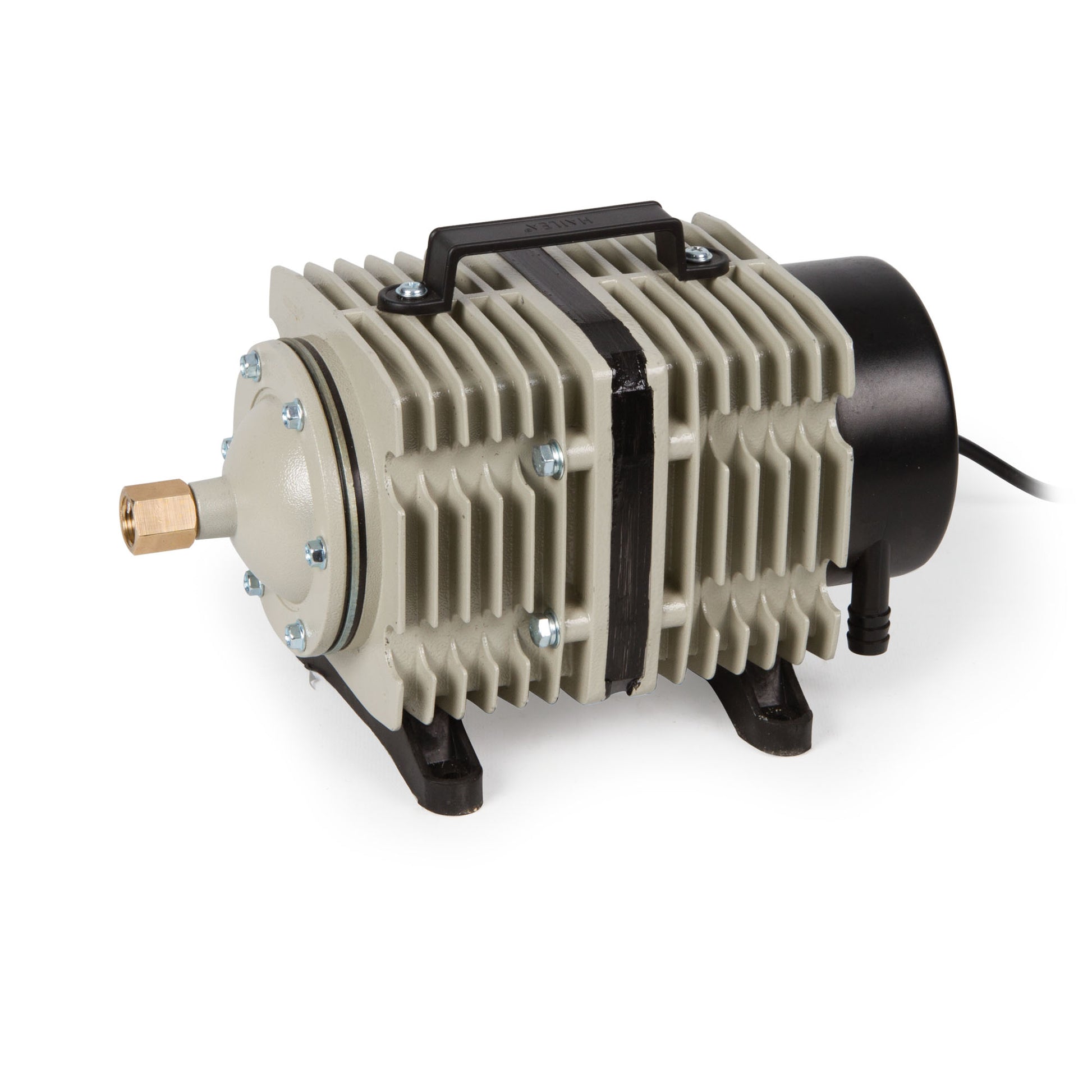

Shallow Water Efficiency (TPS Series)
Designed for depths up to 7 feet, the TPS series combines the rugged reliability of a piston system with the simplicity of a magnetic motor. These fully rebuildable linear piston compressors offer a significant upgrade over standard diaphragm systems, providing longer service life and reduced maintenance. With a compact footprint and high-volume airflow, they are the ideal choice for smaller ponds and decorative water features where economy and quiet operation are paramount.

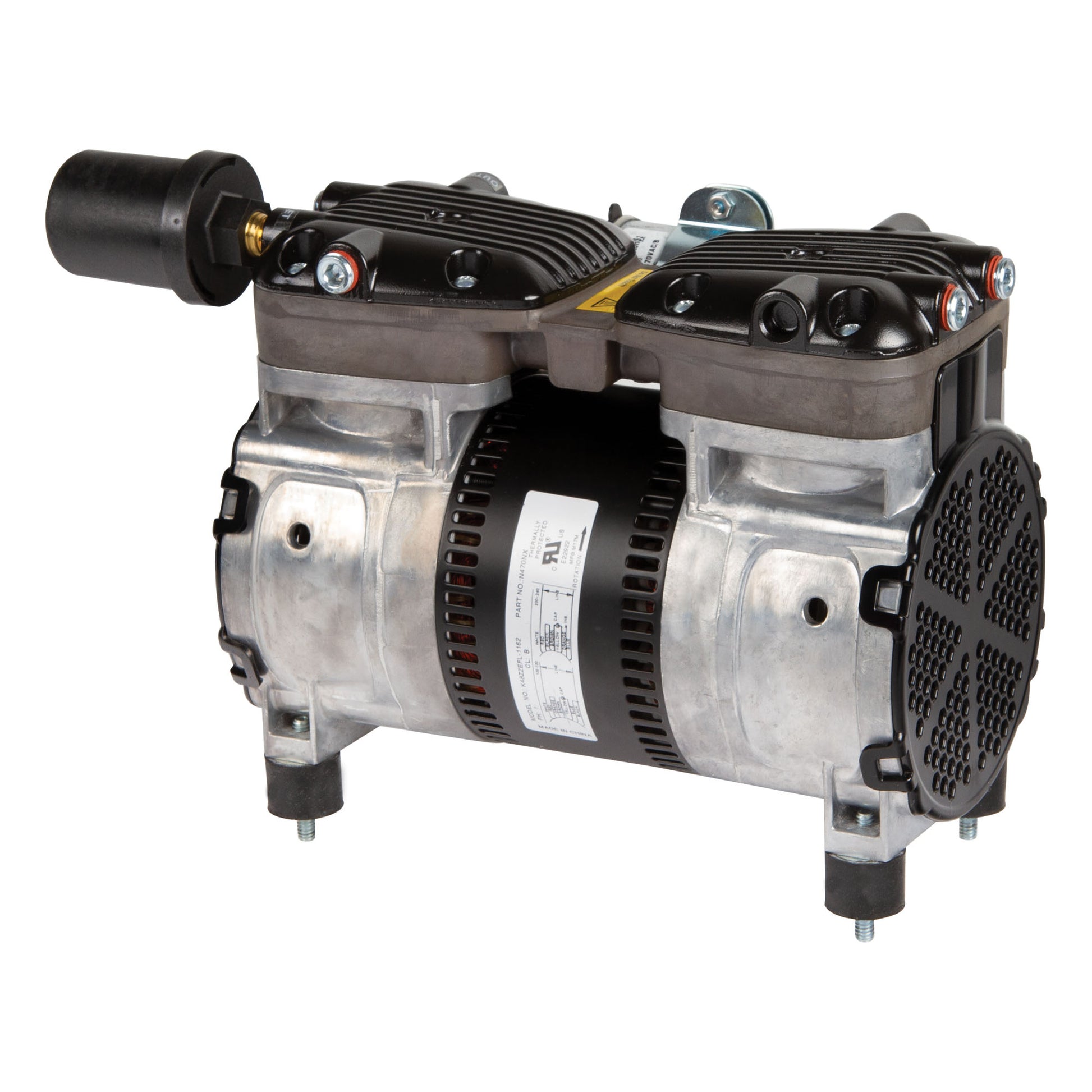

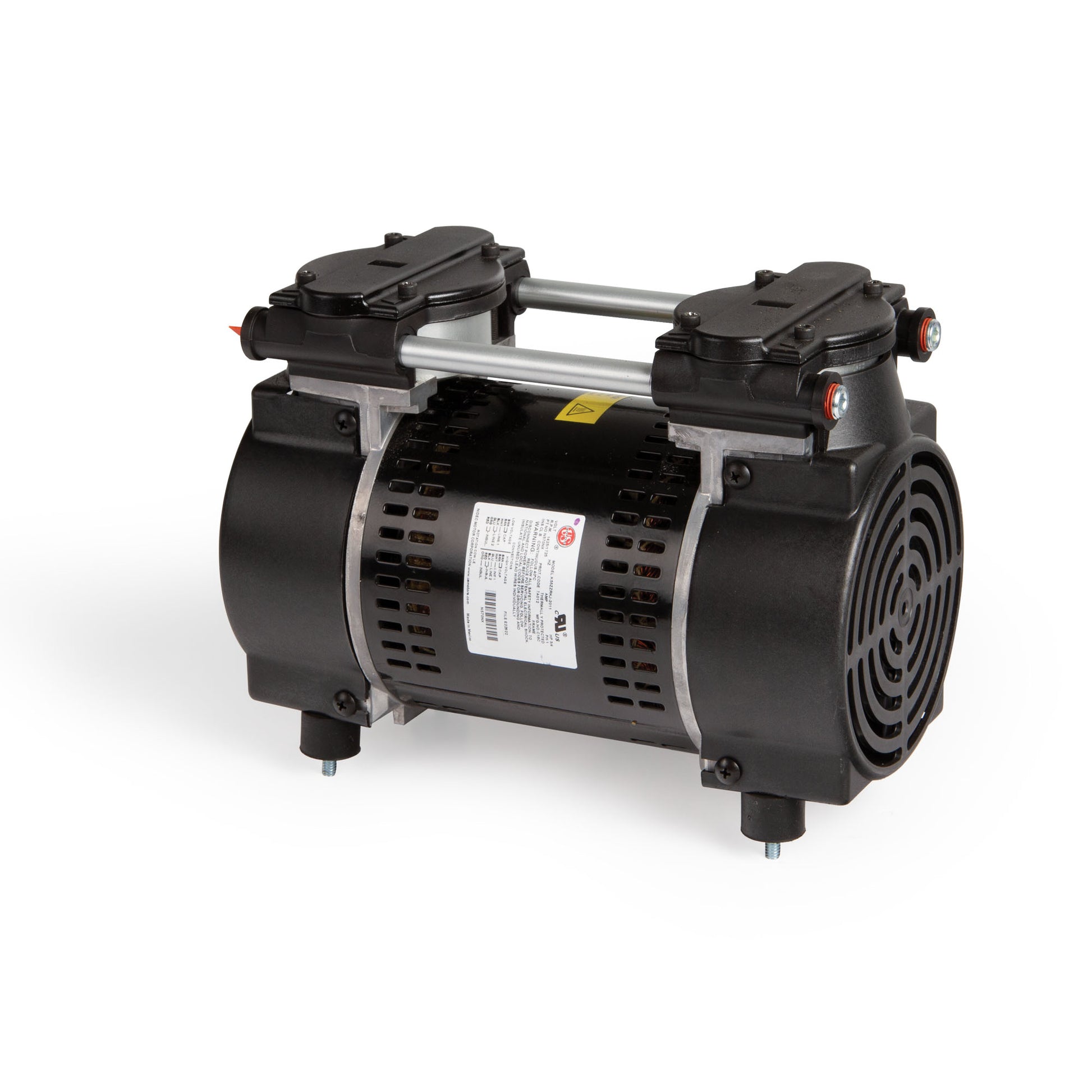

Deep Water Power (TPD Series)
For lakes and deep ponds, the TPD series features world-renowned Gast rocking piston technology. These compact workhorses utilize dual aluminum pistons and hard-coated cylinders to deliver the high-pressure output necessary to reach depths of 35 feet. To ensure longevity, each unit includes a replaceable air filter to keep abrasives out and integrated rubber mounting feet to dampen vibration, making them as quiet as they are powerful.
Professional Maintenance & Longevity
Atlantic-Oase compressors are built for the long haul. Both the TPS and TPD models are completely rebuildable, with internal components that are easily accessible for routine servicing. Each unit comes equipped with a 6-foot power cord and is backed by a 2-year warranty, providing professional pond managers and homeowners with the peace of mind that their aquatic ecosystem is supported by the best hardware in the industry.

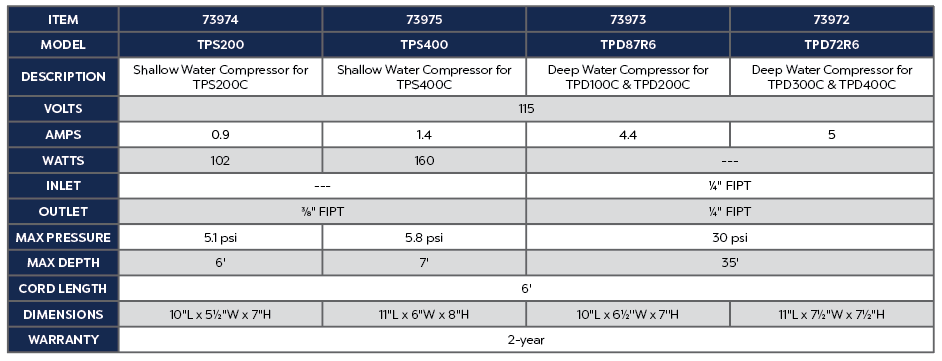

Technical Specifications
| Specification | TPS200 | TPS400 | TPD87R6 | TPD72R6 |
|---|---|---|---|---|
| Type | Linear Piston | Linear Piston | Rocking Piston | Rocking Piston |
| Max Depth | 6' Deep | 7' Deep | 35' Deep | 35' Deep |
| Max Pressure | 5.1 psi | 5.8 psi | 30 psi | 30 psi |
| Outlet Size | 0.375" FIPT | 0.375" FIPT | 0.25" FIPT | 0.25" FIPT |
| Watts / Amps | 102W / 0.9A | 160W / 1.4A | -- / 4.4A | -- / 5.0A |
| Dimensions | 10"L x 5.5"W | 11"L x 6"W | 10"L x 6.5"W | 11"L x 7.5"W |
To prevent premature motor failure, replace the intake air filter at least once a season (more often in dusty environments). If you notice a decrease in bubble production at the diffusers, the internal piston seals may be worn. Both TPS and TPD compressors are fully rebuildable with simple service kits, allowing you to restore factory performance without replacing the entire unit.
