Airmax Remote Manifold Kit
Airmax Remote Manifold KitSKU:AM-600194
Couldn't load pickup availability
Product description
The Airmax Remote Manifold Kit is the essential upgrade for aeration systems where the power source is located away from the pond's edge. Instead of running multiple lines from your compressor, this kit allows you to run a single 1" main line to the water's edge. By placing the control manifold near the pond, you can precisely balance airflow to each diffuser plate while having a clear, direct view of the results, eliminating unnecessary trips back and forth to the cabinet.
System Advantages
- • Pond-Edge Adjustment: Fine-tune air output while visually confirming bubble patterns from each diffuser.
- • Simplified Installation: Greatly reduces the need for multiple airline runs from the compressor cabinet to the water.
- • Protective Junction Box: Includes a heavy-duty, direct-burial enclosure (17"L x 12"W x 6"D) to keep all fittings protected.
- • Universal Tubing Compatibility: Designed to adapt seamlessly to standard 1" poly burial tubing.
Smart Airflow Management
Installing your aeration cabinet away from the pond often creates a challenge: how to balance the air between diffusers when you can't see the pond. The Airmax Remote Manifold Kit solves this by moving the control valves to the water's edge. This kit not only simplifies the installation but also ensures that each diffuser plate receives the exact amount of air needed for optimal pond health and oxygenation.
Complete All-In-One Solution

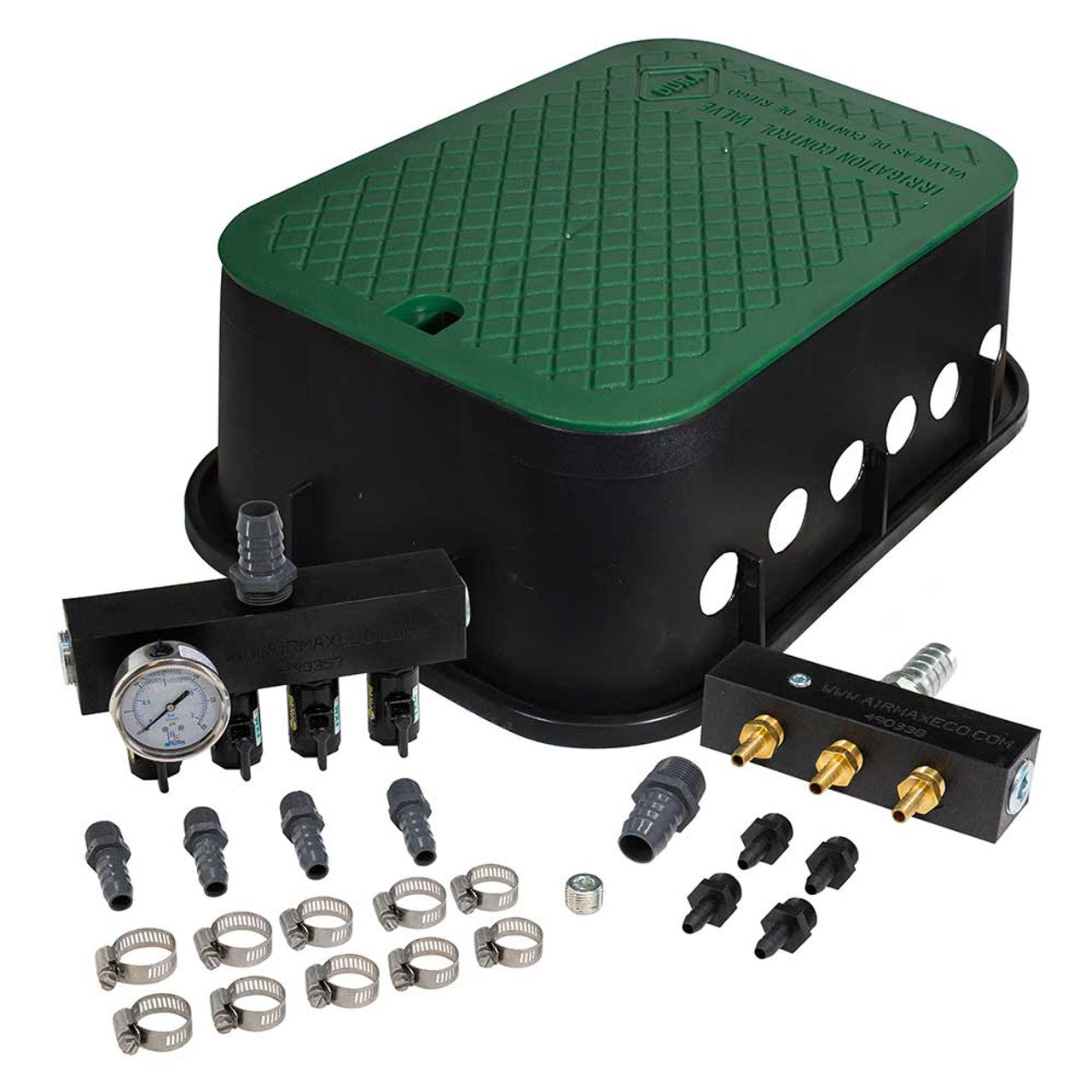

Each kit is ready for installation and includes:
- Junction Valve Box: A rugged enclosure that keeps valves dry and accessible.

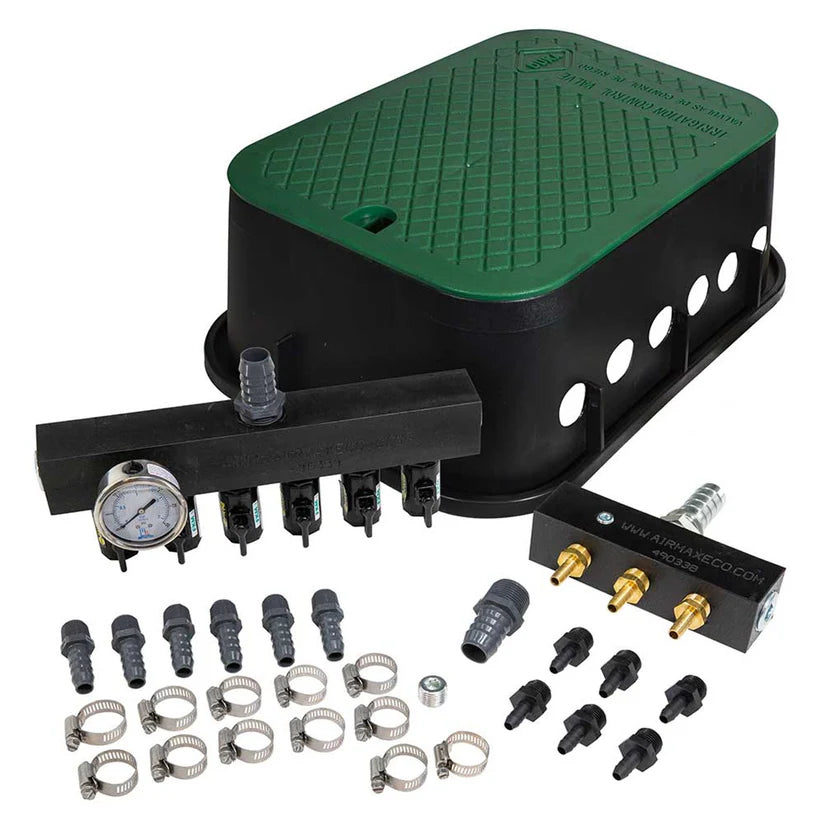

- Remote Manifold: Available in 4-port or 6-port configurations.
- High-Quality Fittings: Specialized connectors to bridge your 1" direct burial tubing.
| Specification | 4-Port Kit | 6-Port Kit |
|---|---|---|
| Compatibility | ||
| Aeration Series | SW20, SW40, SW20HP, SW40HP | PS60, LS60, LS80 |
| Advanced Series | PS20, PS30, PS40, PS80, LS40, LS80* | LS120* |
| Dimensions & Tubing | ||
| Junction Box Size | 17"L x 12"W x 6"D | |
| Main Tubing Support | Adapts to 1" Poly Tubing | |
| Configuration Details | ||
| Number of Ports | 4 Brass Ports | 6 Brass Ports |
| Application | Single Burial Line from Cabinet to Pond | |
*Note: Systems like LS80 or LS120 may require two manifold kits (one for each compressor).

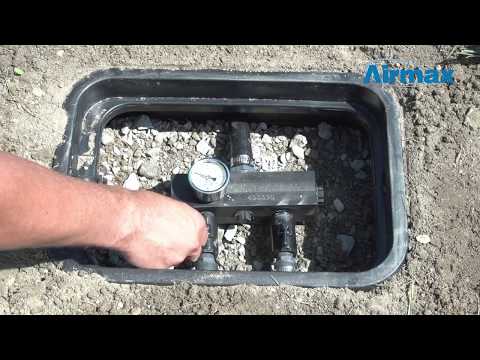

Mount the junction box slightly above grade (above ground level) near the pond edge. This keeps the fittings accessible and ensures the box stays dry while allowing you to easily watch the diffusers while you turn the valves to achieve a perfect, even balance of airflow.
