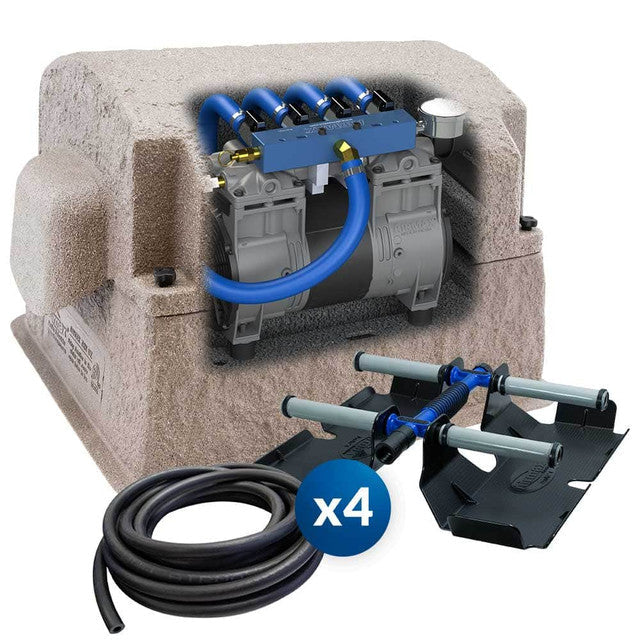

Airmax PondSeries PS40 & PS60 Pond & Lake Aeration System
Airmax PondSeries PS40 & PS60 Pond & Lake Aeration SystemSKU:AM-600842
Couldn't load pickup availability
Product description
The Airmax PondSeries™ PS40 and PS60 are premier bottom-diffused aeration solutions, offered in four versatile configurations to treat lakes up to 6 acres. Proudly Made in the USA, these systems utilize 3 to 6 ProAir™ 4 weighted diffusers and high-output rocking piston compressors to eliminate muck and stratification at depths up to 50 feet. With SmartStart™ Technology and a whisper-quiet cabinet, the PondSeries is the professional choice for custom lake restoration and maintaining a healthy biological balance.
The Airmax Engineering Advantage
Precision built for extreme durability and long-term performance.
Certified for the highest electrical safety standards in outdoor environments.
Protects the motor during pressurized restarts after power interruptions.
Whisper-quiet rocking piston design with vibration-dampening mounts.
Choose from 4 distinct models (3 to 6 diffusers) to match your pond's specific needs.
Flexible power options available in 115V or 230V configurations.
Tailored Lake Restoration
The PondSeries is designed for scalability. Whether you choose the PS40 (available with 3 or 4 diffusers) or the heavy-duty PS60 (available with 5 or 6 diffusers), you receive a system optimized for your specific acreage. This flexibility ensures that every corner of your lake receives adequate oxygenation, effectively reducing muck buildup and organic debris across the entire bottom.
Elite Airflow Management
Every system includes a professional airflow manifold assembly. With individual nickel-plated ball valves for each diffuser, you can precisely tune the air distribution. The integrated pressure gauge and relief valve monitor system health, while the large-format composite cabinet provides a protected, cooled environment for the high-performance SilentAir compressor.
Technical Specifications
| System Specs | PS40 (3 Diff.) | PS40 (4 Diff.) | PS60 (5 Diff.) | PS60 (6 Diff.) |
|---|---|---|---|---|
| Pond Coverage by Depth | ||||
| Max Pond Size | Up to 3 Acres | Up to 4 Acres | Up to 5 Acres | Up to 6 Acres |
| Coverage (6–9' Deep) | 1.5 Acres | 2.0 Acres | 2.5 Acres | 3.0 Acres |
| Coverage (9–12' Deep) | 2.0 Acres | 3.0 Acres | 3.5 Acres | 4.0 Acres |
| Coverage (> 12' Deep) | 3.0 Acres | 4.0 Acres | 5.0 Acres | 6.0 Acres |
| Compressor & Performance | ||||
| Compressor HP | 3/4 HP SilentAir IST | 1 HP SilentAir IST | ||
| Wattage | 495 Watts | 725 Watts | ||
| Max Airflow | 5.6 CFM | 7.1 CFM | ||
| Voltage / Amps | 115V or 230V / 4.3A or 2.15A | 115V or 230V / 6.3A or 3.15A | ||
| Dimensions & Warranty | ||||
| Cabinet Size | 23"L x 17"W x 15"H | 27"L x 24"W x 18.75"H | ||
| Warranty | Cabinet: 10Y • Diffusers: 5Y • Compressor: 3Y | |||
Unsure which configuration to choose? For irregular lake shapes or ponds with deep coves, opting for a system with more diffusers (like the PS60 with 6 diffusers) provides better air distribution even if the total acreage is small. This ensures no stagnant zones are left untreated.
