Airmax EcoSeries 1/2 HP Fountain Kits
Airmax EcoSeries 1/2 HP Fountain KitsSKU:AM-652805-651378
Couldn't load pickup availability
Product description

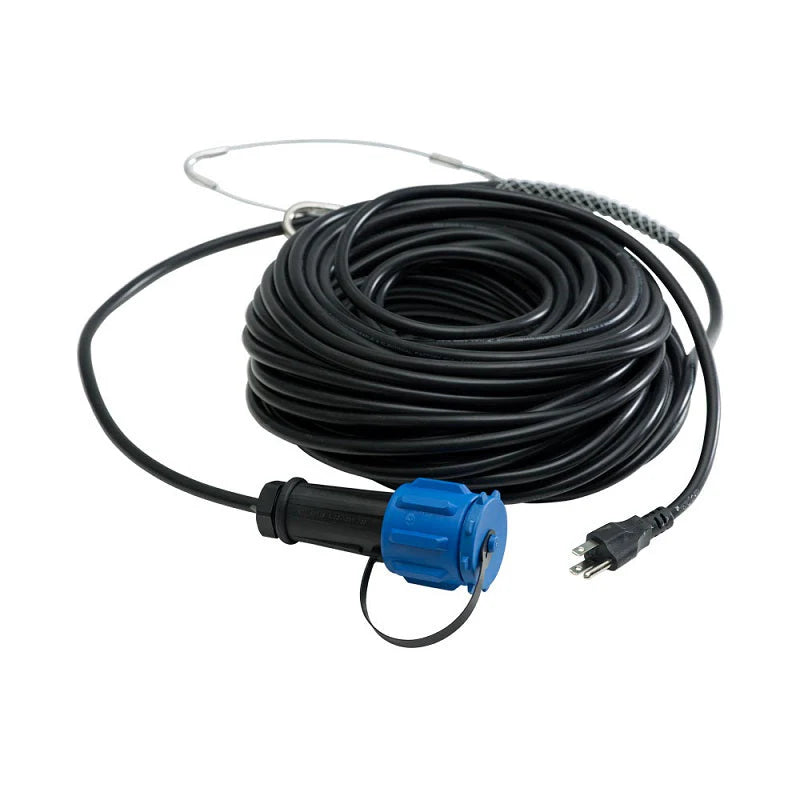

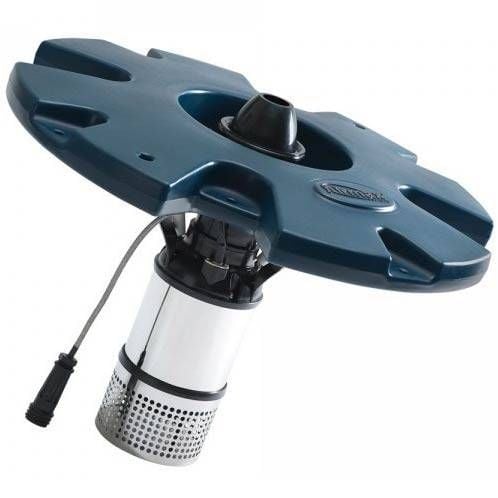

The Airmax EcoSeries 1/2 HP Floating Fountain is a professional-grade water feature engineered to deliver the visual impact of larger 1 HP systems while maintaining superior energy efficiency. Achieving a 14-foot spray height and operating in depths as shallow as 24 inches, it is the premier choice for residential and commercial ponds up to 1/4 acre. This comprehensive kit includes three interchangeable spray patterns, an underwater quick-disconnect power cord, and a NEMA 3R digital control panel, providing a breathtaking aesthetic and essential aeration in one maintenance-free 115V package.
Key System Benefits
Why Invest in the EcoSeries?
Superior Engineering & Material Quality
Unlike standard consumer fountains, the EcoSeries is built with a high-grade asynchronous motor housed in a stainless steel body. Internally, the fountain features silicon carbide shaft bearings and a ceramic shaft—materials chosen for their extreme resistance to wear and heat. This ensures the unit remains maintenance-free and ETL-certified for professional year-round operation.
Customizable Visual Displays
Every EcoSeries kit includes three distinct spray patterns that can be swapped in seconds without any tools:
- Classic: A broad, V-shaped display for maximum water circulation.
- Trumpet: A majestic, high-reaching vertical column of water.
- Crown & Trumpet: An elegant tall central geyser surrounded by a wide lower ring.
Smart Control w/ Plug & Play Ease

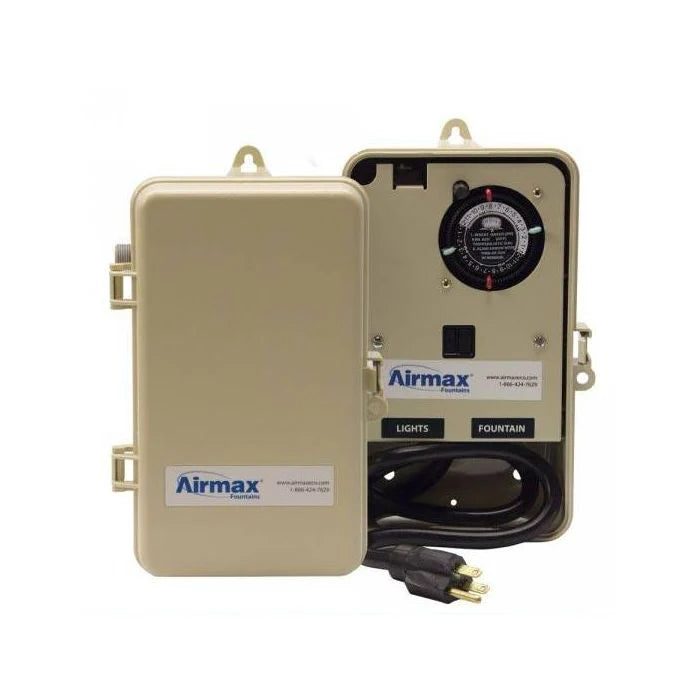

The included Airmax Control Panel (NEMA 3R rated) features dual digital timers, allowing you to independently schedule your fountain and optional LED lighting. This reduces energy costs and extends the life of your motor by running it exactly when you need it.
| Technical Specifications | Airmax EcoSeries 1/2 HP Details |
|---|---|
| Display & Coverage | |
| Recommended Pond Size | Up to 1/4 Acre |
| Maximum Spray Height | 14 Feet |
| Minimum Operating Depth | 24 Inches |
| Nozzles Included | Classic, Trumpet, Crown & Trumpet |
| Motor & Electrical | |
| Horsepower / Voltage | 1/2 HP / 115V |
| Wattage / Running Amps | 667 Watts / 5.8 Amps |
| Daily Operating Cost | ~$0.53 (8 hrs/day) |
| Power Cord Options | 100' to 400' (Quick Disconnect) |
| Warranty Information | |
| Fountain & Power Cord | 3 Years |
| Control Panel | 3 Years |
To truly showcase the beauty of your fountain, we recommend adding Airmax RGBW LED Light Sets, which plug directly into the included control panel. Additionally, if your pond has muskrats or turtles, the stainless steel cord sleeve is an essential upgrade to prevent power cord damage.
