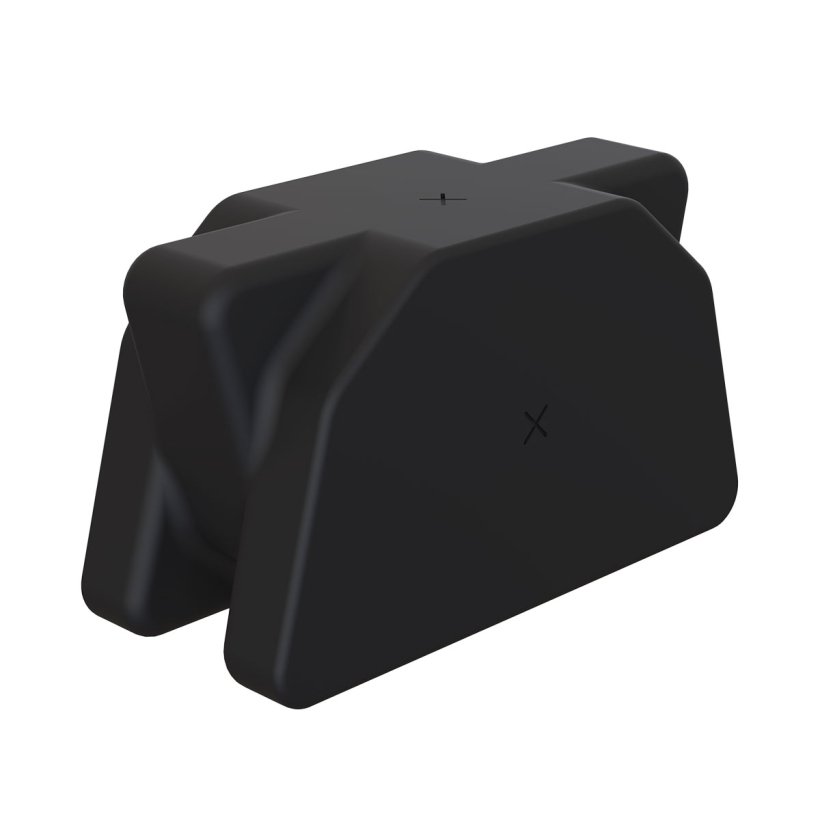

• Aquascape Centipede Module End Cap V2

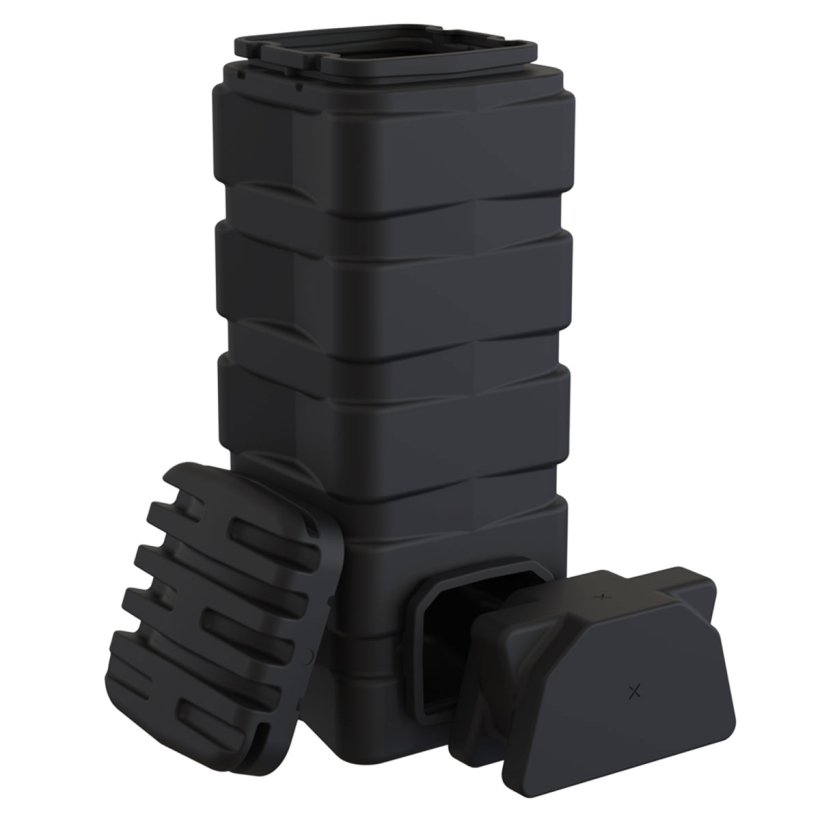

  • Aquascape Snorkel Vault and Lid V2 & End Cap for Centipede

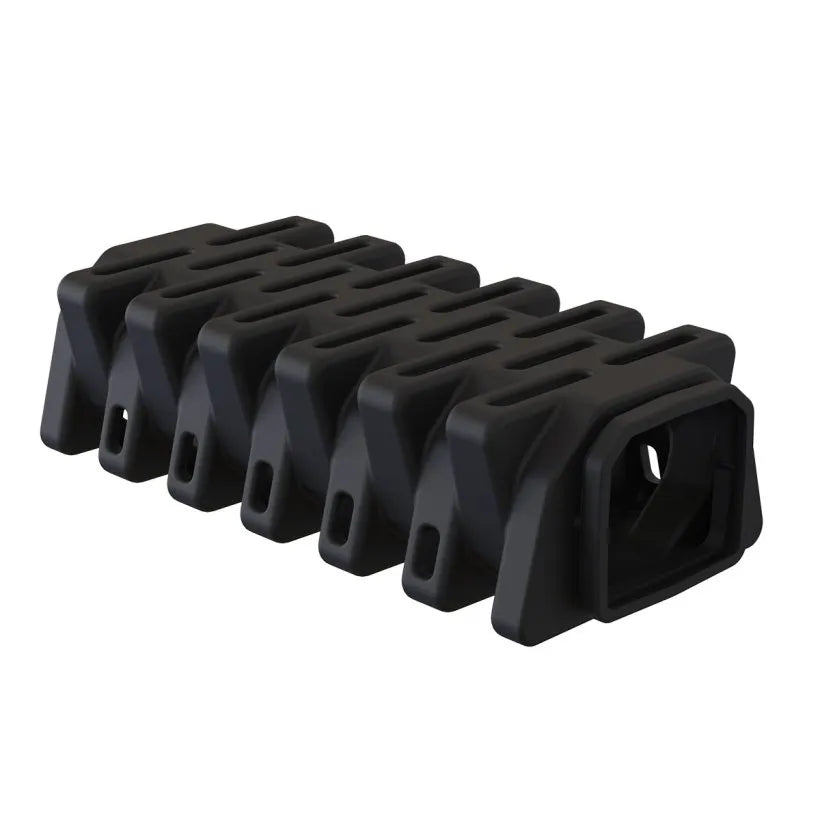

  • Aquascape Centipede Module V2

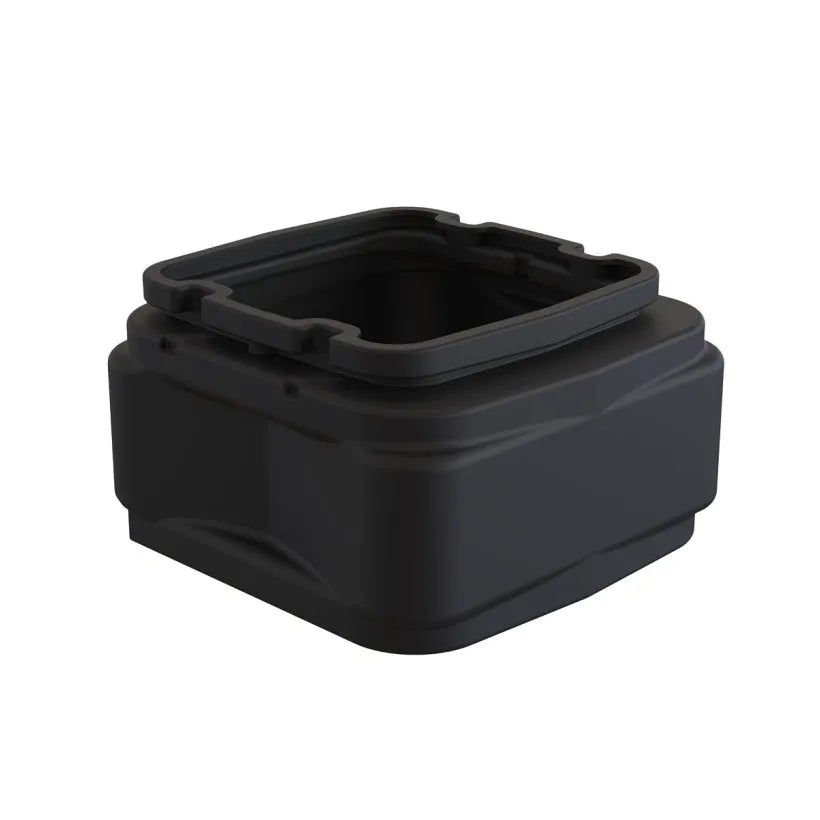

  • Aquascape Snorkel Vault Extension V2

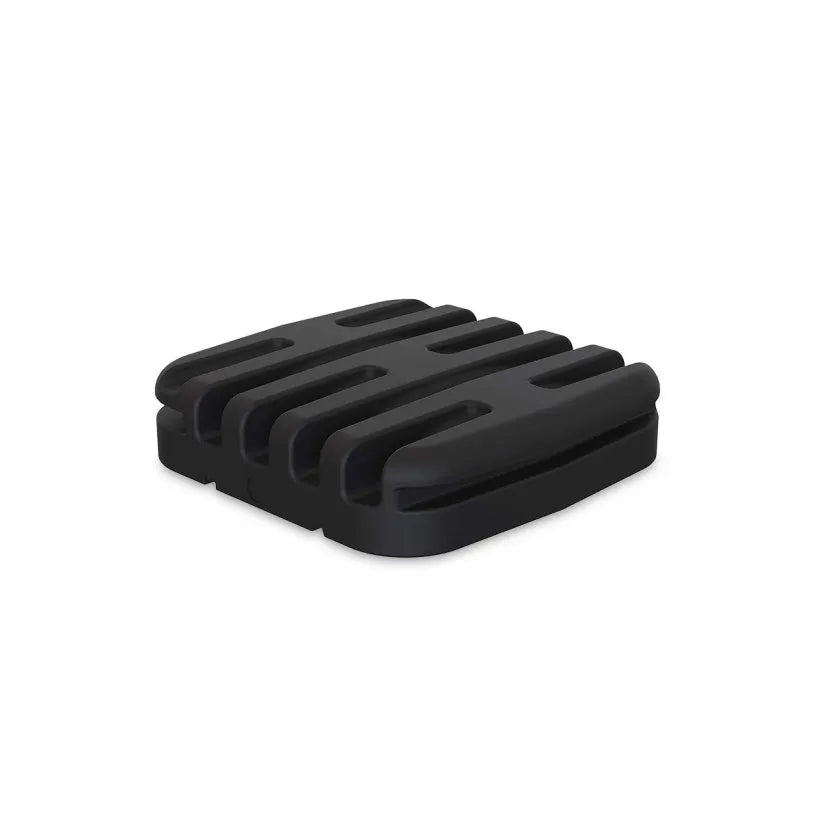

  • Aquascape Snorkel Vault Lid V2

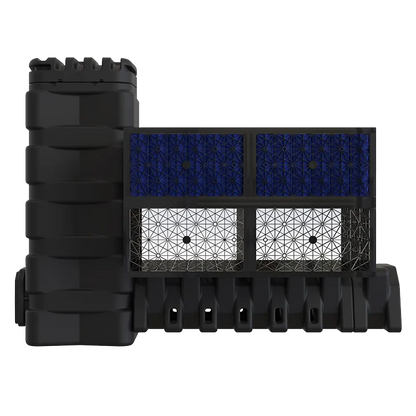

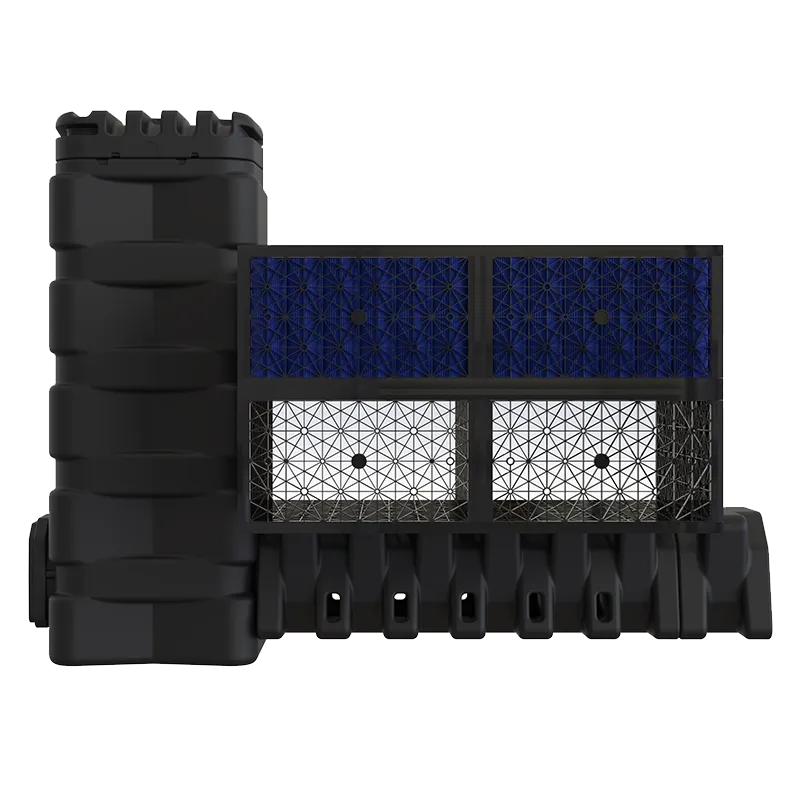

  • Aquascape wetland filters modular system overview
  • How Aquascape wetland filtration components fit together
1 3

Aquascape

Aquascape Wetland Filters

Aquascape Wetland Filters

51011

$199.99 CAD
$249.99 CAD $199.99 CAD
Sale Sold out
Shipping calculated at checkout.
Variant

Modular Aquascape Wetland Filter components for professional pond filtration. Includes Snorkel Vaults & Centipede Modules. Heavy-duty design for better solids settling and biological water clarity.

View full details

Product description

The Aquascape Wetland Filters collection brings together the newly redesigned core components used to build professional wetland and bog filtration systems for ponds and water features. These modular parts are designed to slow water movement, settle solids, improve biological filtration, and keep maintenance more accessible for contractors and homeowners across Canada.

This single product listing includes the essential wetland filtration components shown on leading retailer layouts: the Snorkel® Vault and Lid V2 & End Cap for Centipede®, Centipede® Module V2, Snorkel® Vault Extension V2, Snorkel® Vault Lid V2, and Centipede® Module End Cap V2. Choose the exact component you need for new wetland filter builds, system expansions, or replacement parts.

Why These Wetland Components?

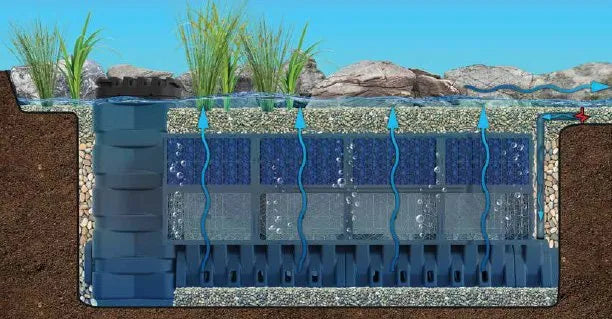

Aquascape wetland filtration components diagram
1
Snorkel® Vault*
Provides a central access point for cleaning and maintaining the wetland filter.
*Snorkel® Vault and Lid V2 & End Cap for Centipede®
2
Snorkel® Vault Lid V2
Protects the Snorkel Vault from debris entry, withstanding foot traffic for safe use.
3
Centipede® Module V2
Distributes water evenly throughout the wetland filter bed for maximum contact with filter media.
4
AquaBlox® Water Storage Modules
Act as a settlement chamber, allowing solids to drop out of suspension before the water rises through the filter media.
5
FilterBlox™ Module
Uses internal Biological Filter Tubes to maximize surface area, greatly increasing capacity for filtration.
6
Centipede® Module End Cap V2
Convenient connection point for incoming plumbing.
  • Built for modular wetland, bog, and pond filtration systems
  • Heavy-duty rotationally molded construction for long-term durability
  • Designed to work together for easier installation and service access
  • Supports better solids settling and greater biological filtration contact
  • Professional-grade Aquascape components suitable for large pond builds

How the System Works

In a wetland filtration layout, the Snorkel Vault creates the main access point for inspection and cleanout, the Centipede Module distributes water across the filter bed, AquaBlox and FilterBlox components help settle solids and increase biological surface area, and the End Cap V2 provides a practical plumbing connection point. This modular format makes it easier to scale filtration capacity while keeping the system serviceable.

Pro Tip

When planning a wetland filter, choose the Snorkel Vault base first, then add Centipede Modules for water distribution and Snorkel Vault Extensions only when deeper excavation or extra media depth is needed. This keeps the system easier to service and helps avoid overbuilding the access point.

Wetland Filter Component Comparison

System Specs 51007 51010 51008 51009 51011
Component Snorkel® Vault and Lid V2 & End Cap for Centipede® Centipede® Module V2 Snorkel® Vault Extension V2 Snorkel® Vault Lid V2 Centipede® Module End Cap V2
Main Purpose Central access point for inspection and cleanout Distributes water across the wetland filter bed Raises vault height for deeper installations Protects the Snorkel Vault from debris and foot traffic Termination point and plumbing connection
Key Advantage Includes lid and end cap in one main service component Slows velocity so heavier solids can settle before treatment Adds 9.5 in. depth per extension Low-profile heavy-duty snap-fit lid Top or side plumbing entry options
Compatibility Works with Centipede® Module V2 and other wetland components Connects to Snorkel Vault V2, End Cap V2, and more modules Stacks onto Snorkel® Vault and Lid V2 base Fits Snorkel® Vault and Lid V2 system Snaps onto Centipede® Module V2
Known Dimensions 19.25" L x 16" W x 42.5" H 33.5" L x 16" W x 9.5" H Adds 9.5" of extension height — —
Made For Main wetland filter access and service point Primary water distribution in the filter bed Deeper beds and extra filtration media depth Replacement or separate lid requirement Flexible plumbing layout at the end of the run

Frequently Asked Questions

What is included in Aquascape Wetland Filters?
This modular listing includes five wetland filtration components: Snorkel Vault and Lid V2 & End Cap for Centipede, Centipede Module V2, Snorkel Vault Extension V2, Snorkel Vault Lid V2, and Centipede Module End Cap V2.
Can these components be expanded for larger wetland filter systems?
Yes. The Centipede Module V2 and Snorkel Vault Extension V2 are designed to expand wetland filtration layouts and deeper installations.
Which component is used for incoming plumbing connections?
The Centipede Module End Cap V2 provides a convenient termination point and accepts incoming plumbing from the top or side.
Are these wetland filter components suitable for professional pond builds in Canada?
Yes. These heavy-duty rotationally molded Aquascape wetland filter components are built for durable installation in large pond and wetland filtration systems.
